Application

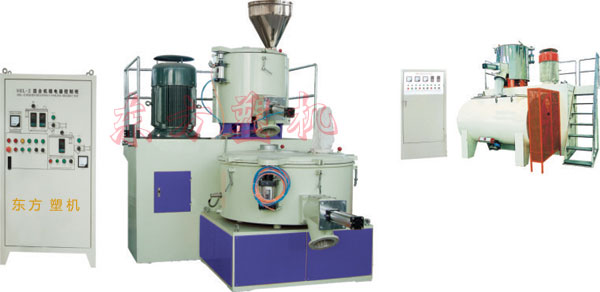

1.It is used in mixing, drying, colouring and other industrial art, it is an the ideal equipment for producing profiles & Pipes.
2.It has self-friction, electric heating functions.
3.Two layers of sealing is adopted in the pot cover. Pot cover of cooling machine adopts arch cover, which can Avoid deforming.
4.It has features of fine construction, good performance.
5.They have passed dynamic and static equilibrium test.
Technical parameters
Model | Total Capacity | Effective Capacity | Stirring speed(r/min) | Motor&Heating power(kw) | Gass consumption m3(min) | Heating method | Discharge method | Dimension(mm) | Weight(T) | Mixing time/p.pot | |
Heat | Cool | ||||||||||
SRL-Z50/100 | 50/100 | 32/75 | 750/1500/180 | 7/11/5.5 | 3t/h | Electricy-friction/Self-friction | Hand work/ Pneumatics | 2300/1800/1900 | 2.8T | 8-10分/鍋 | 6-8分/鍋 |
SRL-Z100/200 | 100/200 | 75/160 | 650/1300/180 | 14/22/7.5 | 3.5t/h | 2500/2000/2200 | 3T | 8-10分/鍋 | 6-8分/鍋 | ||
SRL-Z200/500 | 200/500 | 150/320 | 475/950/130 | 30/42/11 | 5t/h | 4580/2240/2470 | 3.5T | 8-10分/鍋 | 6-8分/鍋 | ||
SRL-Z300/600 | 300/600 | 200/360 | 475/950/130 | 40/55/11 | 3.8t/h | 4580/2240/2500 | 3.8T | 8-10分/鍋 | 6-8分/鍋 | ||
SRL-Z300/1000B | 300/1000 | 200/640 | 475/950/50 | 40/55/11 | 5.8t/h | 4600/3000/4050 | 4.2T | 8-10分/鍋 | 6-8分/鍋 | ||
SRL-Z500/1000A | 500/1000 | 375/650 | 430/860/60 | 47/67/18.5 | 5.8t/h | 4600/3000/4050 | 5.8T | 8-10分/鍋 | 6-8分/鍋 | ||
SRL-Z500/1000B | 500/1000 | 375/640 | 430/860/50 | 55/75/15 | 6.8t/h | 4600/3000/4050 | 7.8T | 8-10分/鍋 | 6-8分/鍋 | ||
SRL-Z500/1600B | 500/1600 | 375/1200 | 430/860/60 | 55/75/18.5 | 10 t/h | 4600/3000/4050 | 7.3T | 8-10分/鍋 | 6-8分/鍋 | ||
SRL-Z800/1600A | 800/1600 | 600/1024 | 500/50 | 75/30 | 10 t/h | 6230/4230/4480 | 8T | 8-10分/鍋 | 6-8分/鍋 | ||
SRL-Z800/2000B | 800/2000 | 600/1500 | 370/740 | 83/110/30 | 12 t/h | 4850/3860/6550 | 7.3T | 8-10分/鍋 | 6-8 |
Application

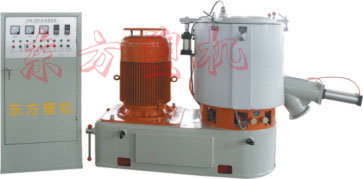

SHR series mixer are mainly used in mixing, drying and dying of all kinds of plastic materials in plastic, rubber, food-stuff,daily chemical industry and so on.
SHR series mixer adopt advanced design and it can be operated easily, safely and reliably. It is of small size, light weight, high efficiency, low energy consumption and low noise.
Technical parameters
Model/data | Capacity(L) | Effective Capacity(L) | Motor(kw) | Main shaft speed(rpm) | Heating method | Discharge method |
SHR-5A | 5 | 3 | 1.1 | 1400 | Self-friction | Hand work |
SHR-10A | 10 | 7 | 3 | 2000 | ||
SHR-50A | 50 | 35 | 7/11 | 750/1500 | Electricy steam | Pneumatics |
SHR-100A | 100 | 75 | 14/22 | 650/1300 | ||
SHR-200A | 200 | 150 | 30/42 | 475/950 | ||
SHR-300A | 300 | 225 | 40/55 | 475/950 | ||
SHR-500A | 500 | 375 | 46/67或55/75 | 430/860 | ||
SHR-800A | 800 | 600 | 60/90或83/110 | 370/740 | ||
SHR-200C | 200 | 150 | 30/42 | 650/1300 | Self-friction | Pneumatics |
SHR-300C | 300 | 225 | 47/67 | 475/950 | ||
SHR-500C | 500 | 375 | 83/110 | 500/1000 |
Application
SHL series cooling mixer combined with SHR series high speed mixer is widely used in process of mixing, drying and dying of various plastics materials. It can cool materials fast after heat mixing to get rid of gas remaining in heat mixed materials. It is beneficial for material storage, transfer and after process. It is one of the necessary equipment in field of plastic processing.
Technical parameters
Model-Data | Capacity(L) | Effective Capacity | Motor kw | Main shaft speed rpm | Cooling method | Discharge method |
SHL-200A | 200 | 130 | 7.5 | ≤200 | water cooling | Pneumatics |
SHL-500A | 500 | 320 | 11 | ≤130 | ||
SHL-800A | 800 | 500 | 15 | ≤100 | ||
SHL-1000A | 1000 | 640 | 15 | ≤86 | ||
SHL-1600A | 1600 | 1050 | 18.5 | ≤50 |
SHL series cooling mixer has advantages of advanced design, easy operation, safe and reliable performance, small size, light weight, high efficiency, low energy consumption, low noise and corrosion resistance.
