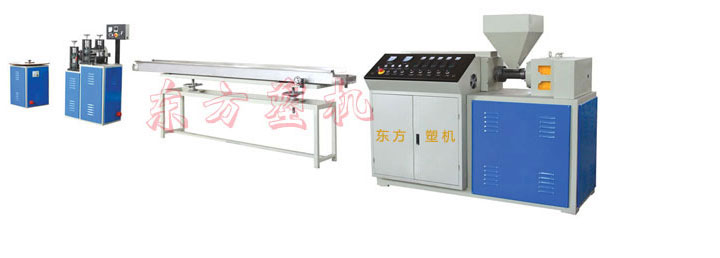

PVC sealing strip production line
Function and application
Mainly adopted in the fields of panel furniture,office furniture,cabinet,etc.Possessing the characteristics of real texture,UV protection,environment-friendly,etc.
Process flow
granulation:compounding→coloring→mixing→extrusion granulating→packing
extrusion:heating and compression→extrusion molding→winding→packing
printing:picking→unwinding→primer painting→printing→glazing→winding→packing
Technical parameters
Model | SJ45/25 | SJ50/25 | SJ55/25 | SJ65/25 |
Screw diameter(mm) | φ45 | φ50 | φ55 | φ65 |
Screw length proportion(L/D) | 25:1 | 25:1 | 25:1 | 25:1 |
Screw speed(r/min) | 20-60 | 20-60 | 20-60 | 20-60 |
Main motor power(kw) | 7.5 | 11 | 15 | 18.5 |
Output(kg/h) | 10-30 | 10-35 | 20-40 | 30-50 |
