Function and application

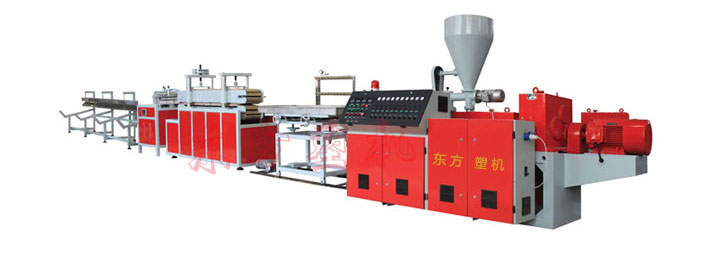

Empoioying Europe and America advanced technology and unitingh with International condition, this unit is developed by our company .It possesses the features such as novel style ,resonable structrue and convenient to operate.Cooperating with suitable mould. It can meet the requirement of producing the profile in high speed .The main machine of this series of the line adopts extruders manufactured in feeding to final to stacking are all controlled automalicallyand every element can also be operated by hand alone .It possesses the advatages such as high piasticizing Capacity, low energy consumption,high productivity performance cost value and long life. It is the best selectng equipment to produce all kinds of plastic profile.
Technical parameters
Model | YF150S | YF150 |
Section bar width(mm) | 300 | 200 |
Vacuum shaping length(mm) | 1500 | 1500 |
Center distance of mold installation(mm) | 320 | 320 |
Degree of vacuun(Mpa) | -0.01—0.09 | -0.01—0.09 |
Traction force(N) | 2000 | 2000 |
Traction speed(m/min max) | 8-10 | 8-10 |
Band open/close range(mm) | 120 | 120 |
Effective tration length(mm) | 2000 | 2000 |
Cutting of screw(mm) | 280 | 280 |
Cutting motor power(kw) | 1.1 | 1.1 |
Length of material stock | 6000 | 6000 |
Specificantions may be modified without any frther notice
