Product
Application & Features
Transportation:such acsteamship, earoplane, carriage, traine compartment,roof shed, case core layer, inner upholster, etc.
Architecture:such as buildingwall board, decoration board, housing, office, publicbuilding interlayer, commercial decoration shelf, non-dust room board, ceiling plate etc.
Advertisement:such as screen printing, computer lettering, ad board,etc. Industry:such as chemical industry antisepticzing project, thermoforming, for refrigerators, for refrigerators, for temperature keeping, for environment protection, etc.
Other applications:such as mould plate, sports equipment, breeding equipment, seashore wet-proof facility, water-fast mateerial, art material, various interlayer, etc.
Production scope:thickness 1-20mm, width 1200-2050mm

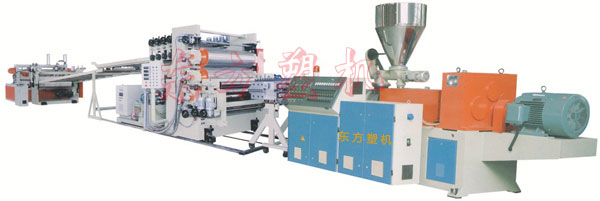

Main Technical Parameters
Screw drive power(kw) | 30-110 |
Screw diameter(mm) | Φ45-Φ150 |
Screw L/D ratio(mm) | 33/1-38/1 |
Screw max. Speed(rpm) | 110 |
Max. Extrusion(kg/h) | 30-600 |
Max. Production line Speed(m/min) | 10 |
Products widthe(mm) | 600-1250 |
Products thickness(mm) | 0.6-20 |
